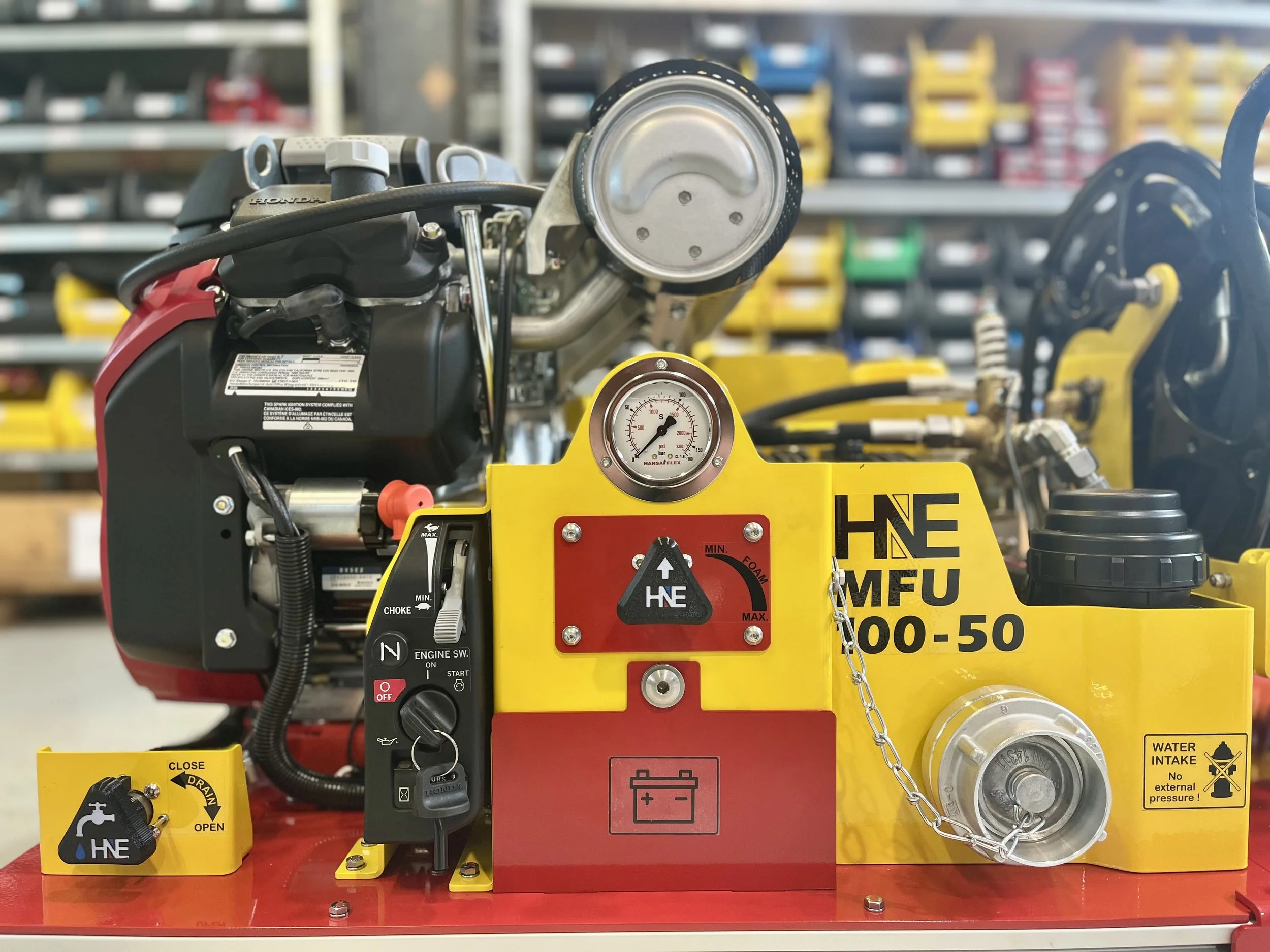

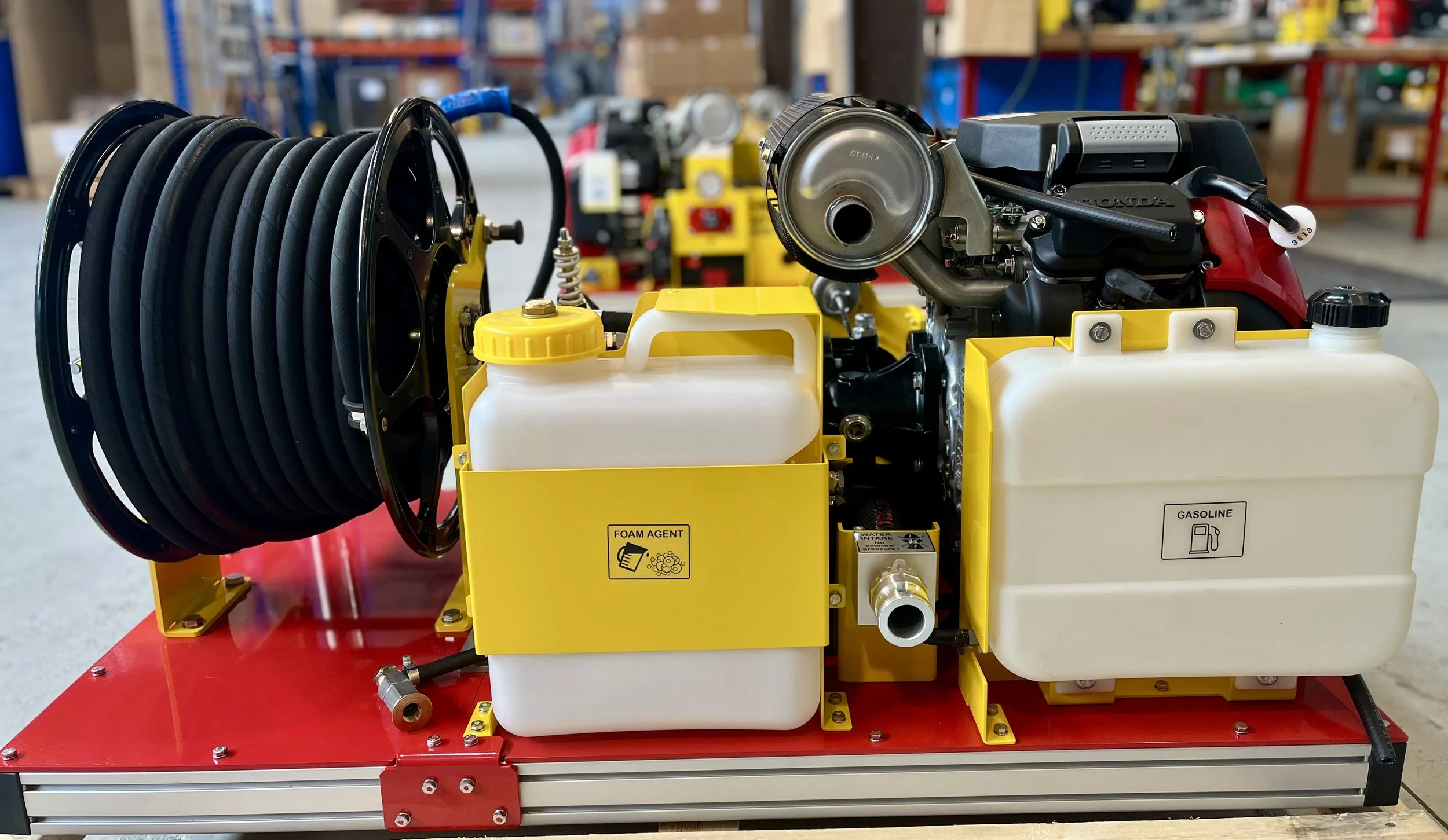

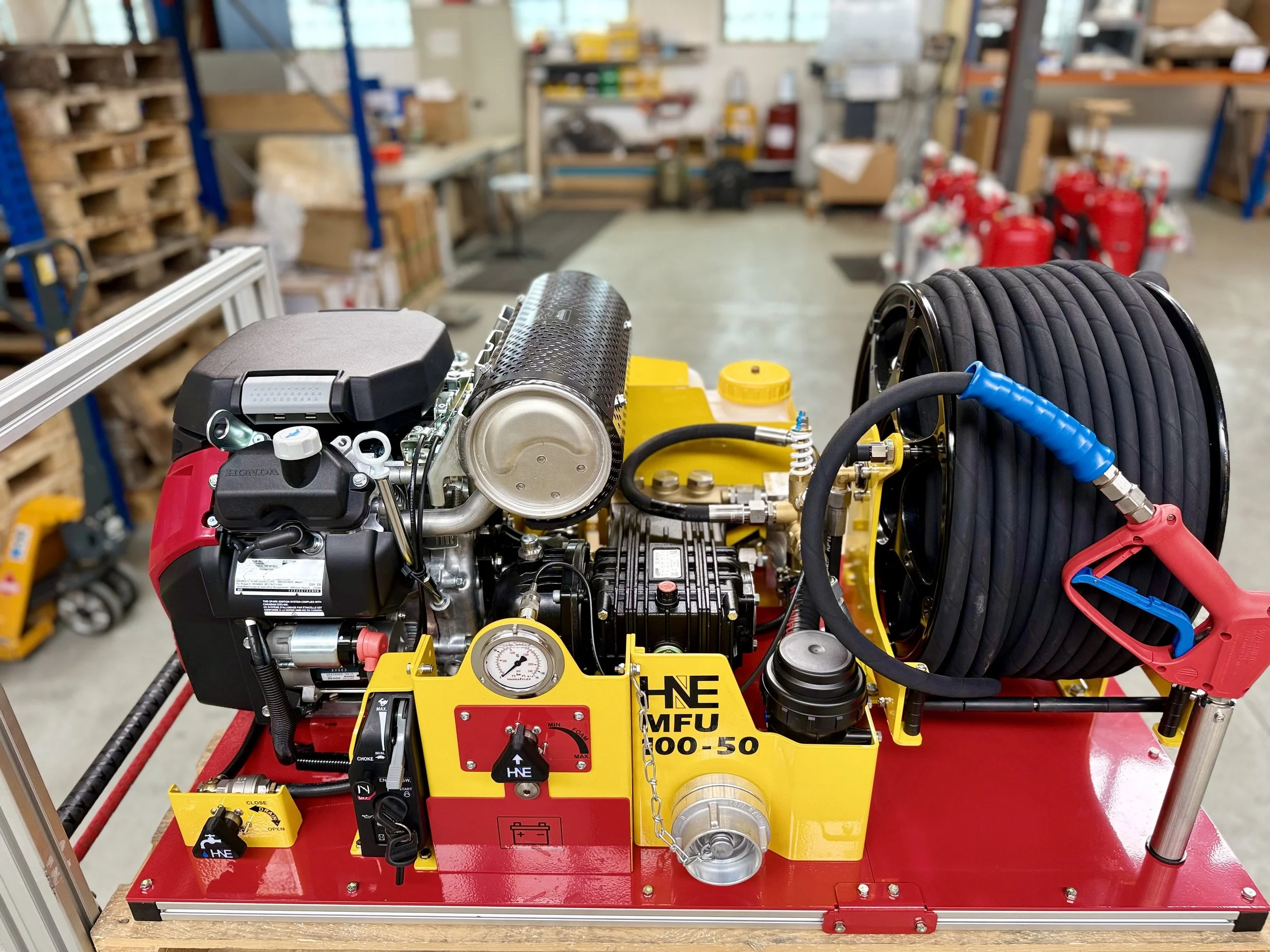

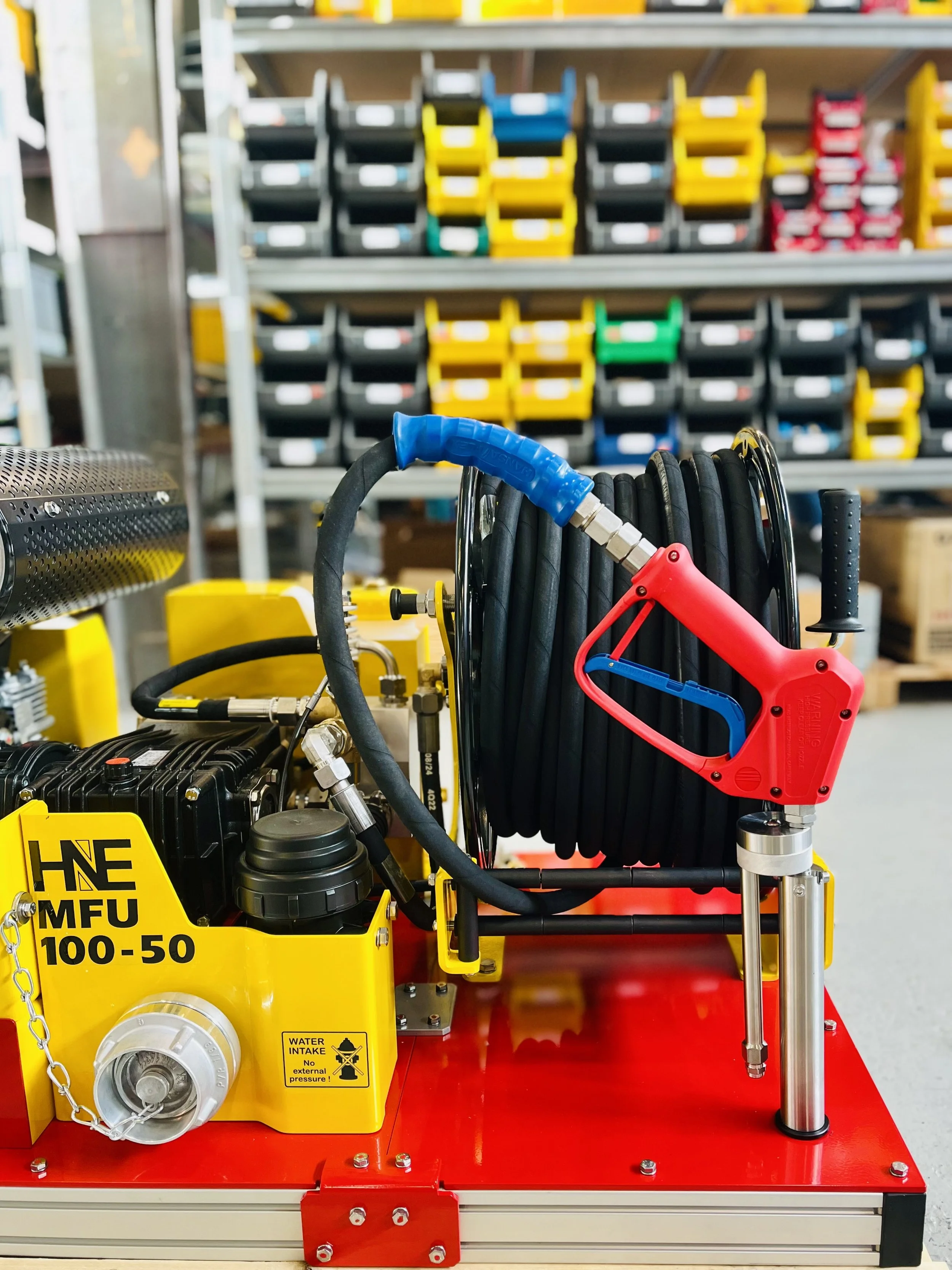

MFU 100-50 UHPS “Shark”
MFU 100-50 UHPS “Shark” from HNE is a high-performance ultra-high-pressure extinguishing system (UHPS), specially designed for rapid and flexible deployment in forest and vegetation fire scenarios. Its compact, energy-autarkic construction makes it ideal for integration on a wide variety of platforms, including light trucks, ATVs, boats, Rapid Intervention Vehicles (RIVs), and other off-road firefighting trucks.
Key Features:
Dual-Mode Operation: Instantly switch between water and fluid foam modes via a simple control knob on the front panel.
Swivel Gun with Dual Nozzles: Features a swivel gun equipped with an additional spray nozzle for both fine water mist and direct spray applications.
High Output Performance: Delivers an impressive flow rate of 43 liters per minute at a working pressure of 100 bar, ensuring rapid fire knockdown capability.
Autonomous & Compact Design: Fully energy-independent and space-efficient for easy installation on virtually any vehicle type.
Customizable SKID Platforms: Available with tailored SKID modules and various water tank configurations to meet diverse operational and spatial requirements.
Engineered for mobility, speed, and effectiveness, the MFU 100-50 UHPS “Shark” is the ideal firefighting solution for fast-response teams operating in rugged terrain or remote locations.
DETAILS
Throwing distance water/foam: up to 20 meters
Throwing distance in spray mode: up to 10 meters
Haspel: 60 m hydraulic hose (100 m optionally)
Weight (filled): 164KG
Flow rate (water): 43 l/m
Foam expansion ratio: 1: 8 (with 1% foam concentrate)
Foam flow rate : 344 l/m
Max. suction height: app. 2,5 m
Dimensions: 1270 / 673 /587 mm (both main and hose reel module)
Swivel gun : Jet and Water Mist/Spray
